Mobile Robotic Lift Platform
$9,000 OBO
Custom-built for a startup prototype with $15K+ in parts and engineering time. Asking $9,000 OBO — significantly below cost.Originally built to support a 5-axis robotic arm, but can be adapted for many use cases. It performed as intended, but we pivoted away from this setup—great opportunity for someone building a similar system.
Specs & Features
Dimensions: 24" x 36"
Lift capacity: ~75–100 lbs
Base height: ~33.5"
Max height: ~44.75"
Frame made of Aluminum extrusion with aluminum sheet metal.
Pre-cut mount area for robotic arm (can be modified for other setups).

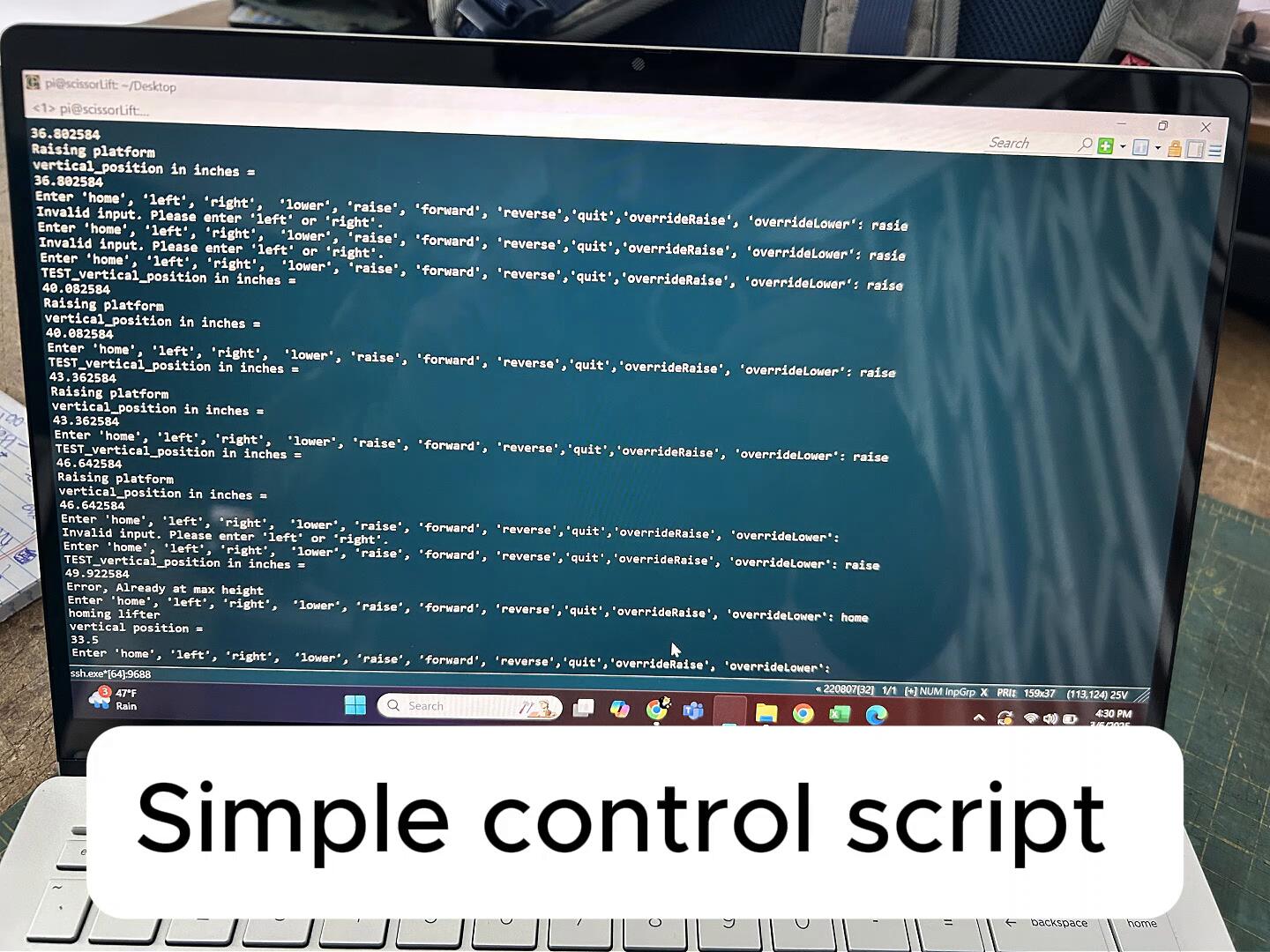

Controlled via Raspberry Pi (SSH access). Simple script to move lift will be provided.
Arduino Nano-based motor control system.
Powertrain is 2 servo motors.
Expandable to 4 servo motors with additional Arduino expansion.
Powered by two 12V car batteries
Includes battery charger.
Auxiliary power outputs: 5V, and 24V-48V for accessories.
Electronics & Control:
Shipping & Purchasing
Uline 40"x40"x40" shipping crate included (approx. $275 value).
Buyer pays for shipping.
Local pickup can be arranged if near Los Angeles Area.
Payment will be processed through escrow.

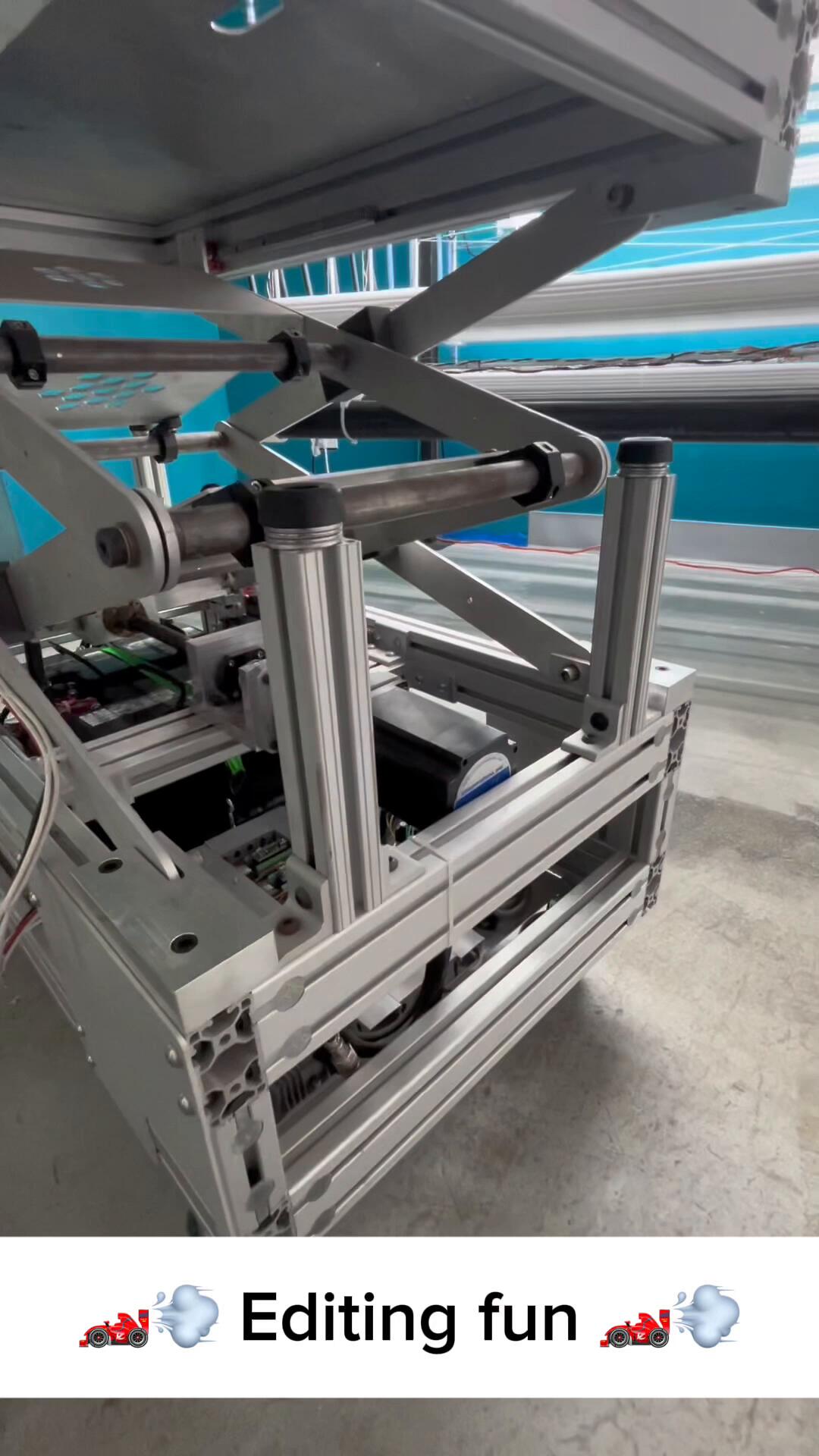

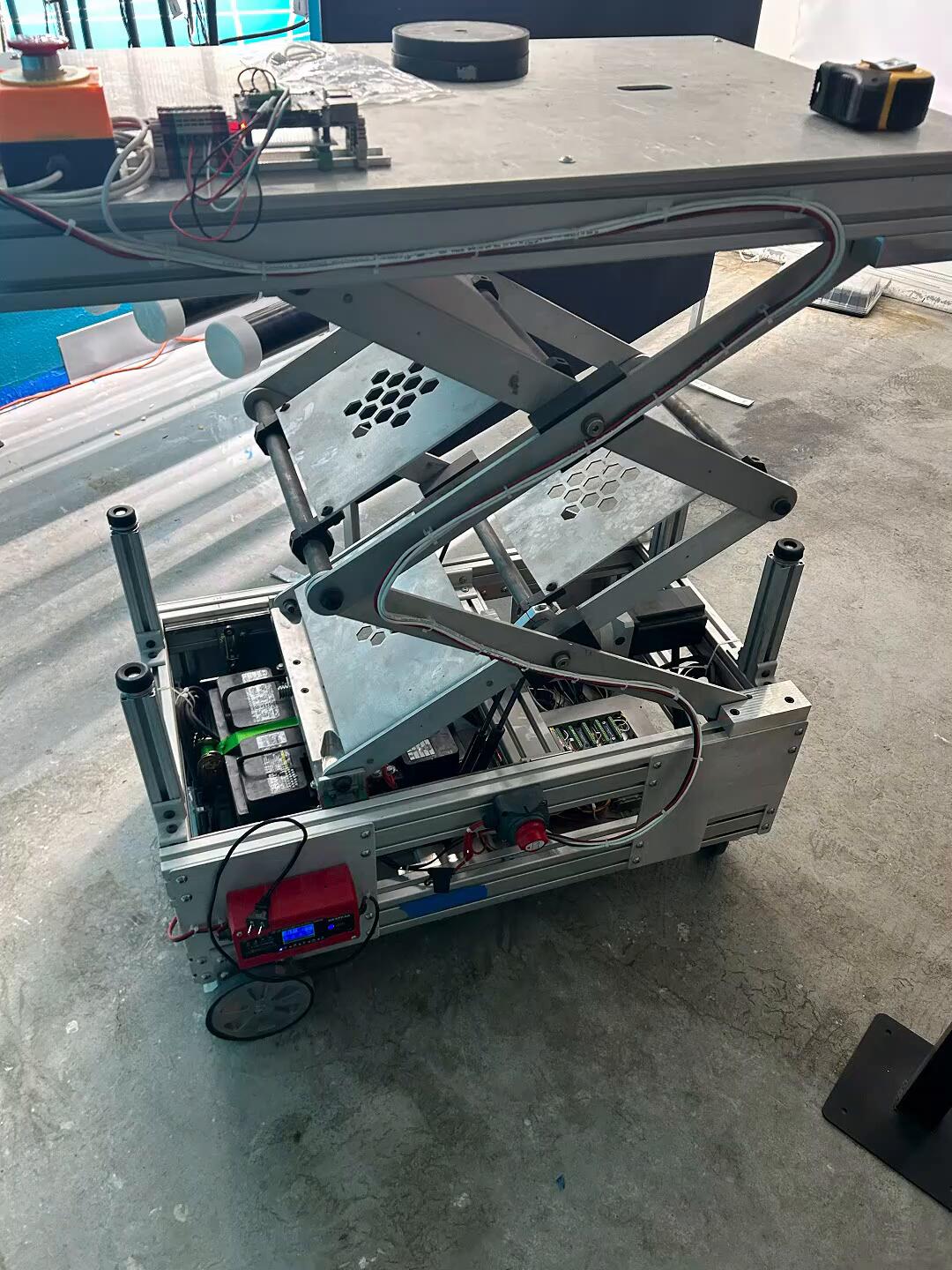

Media
Buy Now
Contact us to purchase at asking price, make an offer (OBO), or with any questions.
